Genmega Nova
Blueprint’s large-screen, premium retail option — a 17" full-motion display built for locations that want the ATM itself to double as an advertising surface.
- Sold at cost
- no hardware markup
- Processing available
- through Blueprint
- Free shipping
- on this machine
- Setup guidance
- from a specialist
Overview

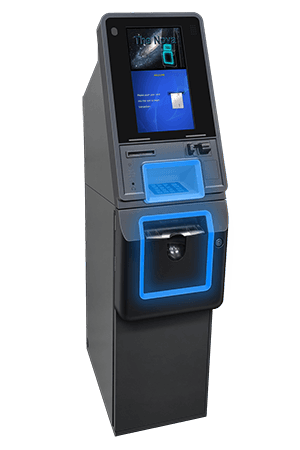

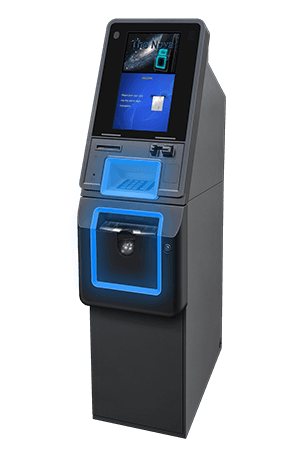

The Genmega Nova is built around a 17" high-resolution touchscreen running full-motion video, with edge lighting around the cash dispenser and keypad. It’s the machine to recommend when a location wants the ATM to double as a visible advertising surface instead of adding a separate digital topper.
Under the display, the Nova shares its dispenser, lock, and vault hardware with the rest of Genmega’s retail line — up to four 2,000-note cassettes, the same UL291 business-hours vault, and the same lock options as the G2500 and Onyx — so it doesn’t require stocking different service parts.
Consider the Nova over the G2500 when display size and visual impact matter more than upfront cost; consider the G2500 or Halo II when a smaller footprint or lower entry price is the priority.
Technical Specifications
- Display
- 17" touchscreen LCD, 1920×1080, full-motion video capable
- Card Reader
- DIP card reader, EMV
- Cash Capacity
- 1,000-note SCDU standard; up to four 2,000-note HCDU cassettes (8,000 notes) available
- Printer
- 80mm thermal receipt printer (200 DPI mono-graphic)
- Safe / Vault
- UL291 business-hours vault; optional Level 1 vault
- Locks
- Electronic lock standard; S&G A-Series or Kaba Mas Cencon optional
- Communications
- TCP/IP Ethernet (onboard SSL)
- ADA Accessibility
- Voice guidance, lighted transaction guidance, accessible keypad layout
- Installation Type
- Freestanding retail
- Dimensions (H × W × D)
- 60.4" × 15.8" × 22.3"
- Weight
- 220.2 lbs
- Power
- 110/220 VAC ±10%, 50/60 Hz, 145 W
- Operating Temperature
- 45°F–95°F (5°C–35°C)
Warranty
Genmega's standard manufacturer warranty on new machines is 2 years on parts. Labor and on-site service terms aren't published by the manufacturer — ask a specialist for current coverage.
Shipping & Setup
Free shipping is included on this machine. Delivery timing depends on your location and is confirmed before your final invoice. Blueprint ATMs can advise on placement, connectivity, and initial programming once your machine ships.
Inspect before you sign: check the carton and unit for damage before signing the carrier's delivery paperwork. Note any damage directly on the delivery receipt and photograph it — a clean, signed receipt makes it very difficult to file a damage claim afterward.
Processing Compatibility
This machine can be configured for Blueprint ATM processing. See current processing rates or learn about switching processors if you already own equipment.
What Your Location Needs
An ATM isn't self-sustaining — before install day, your location will need:
- A dedicated 110V power outlet within reach of the machine
- A surge protector installed on that outlet
- An active internet connection — a wired Ethernet (CAT5) line or a cellular/wireless data plan compatible with the ATM
