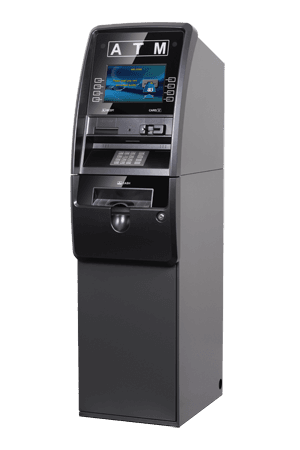

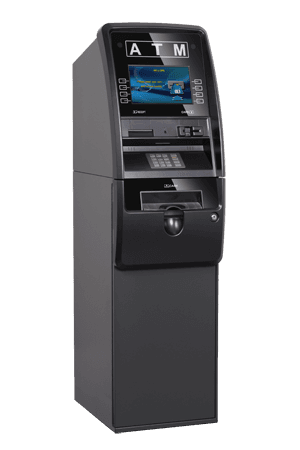

Genmega Onyx
A contemporary Genmega retail ATM with the widest touchscreen upgrade in the lineup and the same deep dispenser configuration as the G2500.
- Sold at cost
- no hardware markup
- Processing available
- through Blueprint
- Free shipping
- on this machine
- Setup guidance
- from a specialist
Overview
The Genmega Onyx shares the G2500’s dispenser, lock, and vault architecture but steps up the display — a 10.2" wide screen standard, upgradable to a 12" touchscreen, the largest touch option among Blueprint’s compact retail machines.
Its reflective front panel and modern cabinet are built to stand out in hotels, clubs, gas stations, and similar high-visibility retail locations, while still reading clearly as a financial device to encourage transactions.
Compare it directly against the G2500: the two share nearly identical configuration options, so the choice mostly comes down to cabinet appearance and display size preference.
Technical Specifications
- Display
- 10.2" wide LCD (1280×800) standard, 12" touchscreen optional
- Card Reader
- DIP card reader, EMV optional
- Cash Capacity
- 1,000-note SCDU standard; up to four 2,000-note HCDU cassettes (8,000 notes) available
- Printer
- 2" standard, 3" graphics-capable optional
- Safe / Vault
- UL291 business-hours vault
- Locks
- Electronic lock standard; S&G A-Series or Kaba Mas Cencon optional
- Communications
- TCP/IP Ethernet (SSL), 56K internal modem
- ADA Accessibility
- Voice guidance, lighted transaction guidance, accessible keypad layout
- Installation Type
- Freestanding retail
- Dimensions (H × W × D)
- 56.3" × 15.8" × 22.2"
- Weight
- 198 lbs
- Power
- 110/220 VAC ±10%, 50/60 Hz, 145 W
- Operating Temperature
- 45°F–95°F (5°C–35°C)
Warranty
Genmega's standard manufacturer warranty on new machines is 2 years on parts. Labor and on-site service terms aren't published by the manufacturer — ask a specialist for current coverage.
Shipping & Setup
Free shipping is included on this machine. Delivery timing depends on your location and is confirmed before your final invoice. Blueprint ATMs can advise on placement, connectivity, and initial programming once your machine ships.
Inspect before you sign: check the carton and unit for damage before signing the carrier's delivery paperwork. Note any damage directly on the delivery receipt and photograph it — a clean, signed receipt makes it very difficult to file a damage claim afterward.
Processing Compatibility
This machine can be configured for Blueprint ATM processing. See current processing rates or learn about switching processors if you already own equipment.
What Your Location Needs
An ATM isn't self-sustaining — before install day, your location will need:
- A dedicated 110V power outlet within reach of the machine
- A surge protector installed on that outlet
- An active internet connection — a wired Ethernet (CAT5) line or a cellular/wireless data plan compatible with the ATM
