Genmega GT3000
Genmega's compact through-the-wall ATM — full retail features in a small, weather-resistant chassis for tight spaces and kiosks.
- Sold at cost
- no hardware markup
- Processing available
- through Blueprint
- Free shipping
- on this machine
- Setup guidance
- from a specialist
Overview

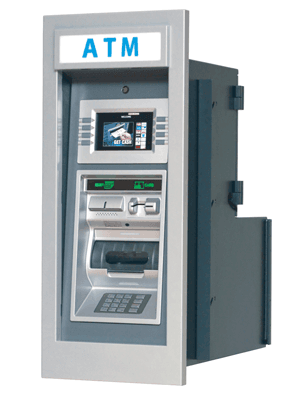

The GT3000 is Genmega’s compact through-the-wall ATM, built for locations where space is at a premium — kiosks, small storefronts, and exterior walls with limited depth. It retains the same feature set as Genmega’s freestanding retail machines in a smaller weather-resistant cabinet.

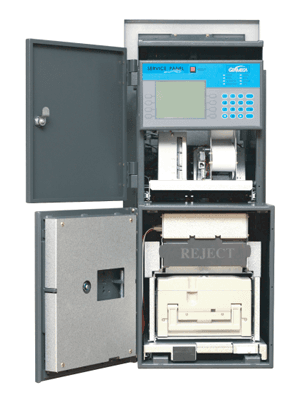

It ships with a fixed 800-note cassette or an upgraded rear-load 2,000-note removable cassette, a 7" display, and a 2" receipt printer. An optional rear service panel gives technicians secure, convenient access for loading and maintenance from behind the wall.
Compare it against the larger GT5000 when a location needs more cash capacity or a bigger customer-facing display than the GT3000’s compact chassis allows.
Technical Specifications
- Display
- 7" LCD, 800×480
- Card Reader
- DIP card reader, EMV optional
- Cash Capacity
- 800-note fixed cassette or 2,000-note rear-load removable cassette
- Printer
- 2" thermal receipt printer
- Safe / Vault
- UL291 business-hours vault
- Locks
- Electronic lock standard; S&G A-Series or Kaba Mas Cencon optional
- Communications
- TCP/IP Ethernet (SSL), 56K internal modem
- ADA Accessibility
- Voice guidance, lighted transaction guidance, accessible keypad layout
- Installation Type
- Through-the-wall, compact / weather-resistant
- Dimensions (H × W × D)
- 35.4" × 15" × 29.9"
- Weight
- 145.6 lbs (with TCDU)
- Power
- 110/220 VAC ±10%, 50/60 Hz, 145 W
- Operating Temperature
- 45°F–95°F (5°C–35°C)
Warranty
Genmega's standard manufacturer warranty on new machines is 2 years on parts. Labor and on-site service terms aren't published by the manufacturer — ask a specialist for current coverage.
Shipping & Setup
Free shipping is included on this machine. Delivery timing depends on your location and is confirmed before your final invoice. Blueprint ATMs can advise on placement, connectivity, and initial programming once your machine ships.
Inspect before you sign: check the carton and unit for damage before signing the carrier's delivery paperwork. Note any damage directly on the delivery receipt and photograph it — a clean, signed receipt makes it very difficult to file a damage claim afterward.
Processing Compatibility
This machine can be configured for Blueprint ATM processing. See current processing rates or learn about switching processors if you already own equipment.
What Your Location Needs
An ATM isn't self-sustaining — before install day, your location will need:
- A dedicated 110V power outlet within reach of the machine
- A surge protector installed on that outlet
- An active internet connection — a wired Ethernet (CAT5) line or a cellular/wireless data plan compatible with the ATM
