Genmega GT5000
Genmega's premium through-the-wall ATM — a 15" high-bright display and motorized cash presenter for high-traffic exterior installations.
- Sold at cost
- no hardware markup
- Processing available
- through Blueprint
- Free shipping
- on this machine
- Setup guidance
- from a specialist
Overview

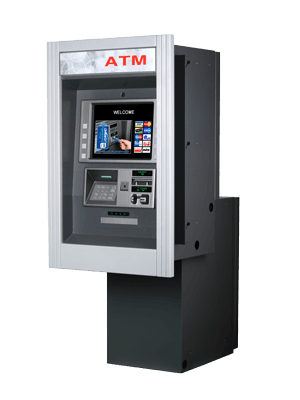

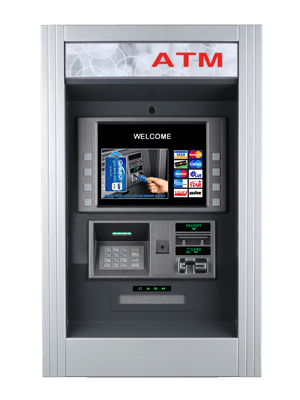

The GT5000 is Genmega’s premium through-the-wall ATM, built for high-traffic exterior and drive-thru installations that need the look and durability of a full bank ATM. A 15" high-bright display supports custom advertisements, and a motorized cash presenter handles up to three 2,000-note cassettes.

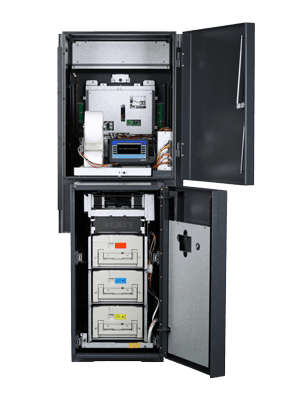

A touchscreen rear-service panel gives technicians secure access from inside the building without disturbing the customer-facing unit, and an optional pedestal base adapts the machine to different mounting heights.
Choose the GT5000 over the GT3000 or Force T when a location needs the highest through-the-wall cash capacity Blueprint offers, or when the larger illuminated display is a priority for visibility.
Technical Specifications
- Display
- 15" color TFT-LCD, 1024×768, high-bright LED backlight (800 cd/m²)
- Card Reader
- DIP magnetic card reader, EMV optional
- Cash Capacity
- Up to three 2,000-note removable cassettes (6,000 notes)
- Printer
- 80mm / 3" receipt printer
- Safe / Vault
- UL291 business-hours vault
- Locks
- Electronic lock standard; S&G A-Series or Cencon optional
- Communications
- TCP/IP Ethernet (SSL), 56K internal modem
- ADA Accessibility
- Voice guidance, lighted transaction guidance, accessible keypad layout
- Installation Type
- Through-the-wall, high-traffic / drive-thru
- Dimensions (H × W × D)
- 56.8" × 24" × 35.5"
- Weight
- 340 lbs
- Power
- 110/220 VAC ±10%, 50/60 Hz, 145 W
- Operating Temperature
- 40°F–95°F
Warranty
Genmega's standard manufacturer warranty on new machines is 2 years on parts. Labor and on-site service terms aren't published by the manufacturer — ask a specialist for current coverage.
Shipping & Setup
Free shipping is included on this machine. Delivery timing depends on your location and is confirmed before your final invoice. Blueprint ATMs can advise on placement, connectivity, and initial programming once your machine ships.
Inspect before you sign: check the carton and unit for damage before signing the carrier's delivery paperwork. Note any damage directly on the delivery receipt and photograph it — a clean, signed receipt makes it very difficult to file a damage claim afterward.
Processing Compatibility
This machine can be configured for Blueprint ATM processing. See current processing rates or learn about switching processors if you already own equipment.
What Your Location Needs
An ATM isn't self-sustaining — before install day, your location will need:
- A dedicated 110V power outlet within reach of the machine
- A surge protector installed on that outlet
- An active internet connection — a wired Ethernet (CAT5) line or a cellular/wireless data plan compatible with the ATM
