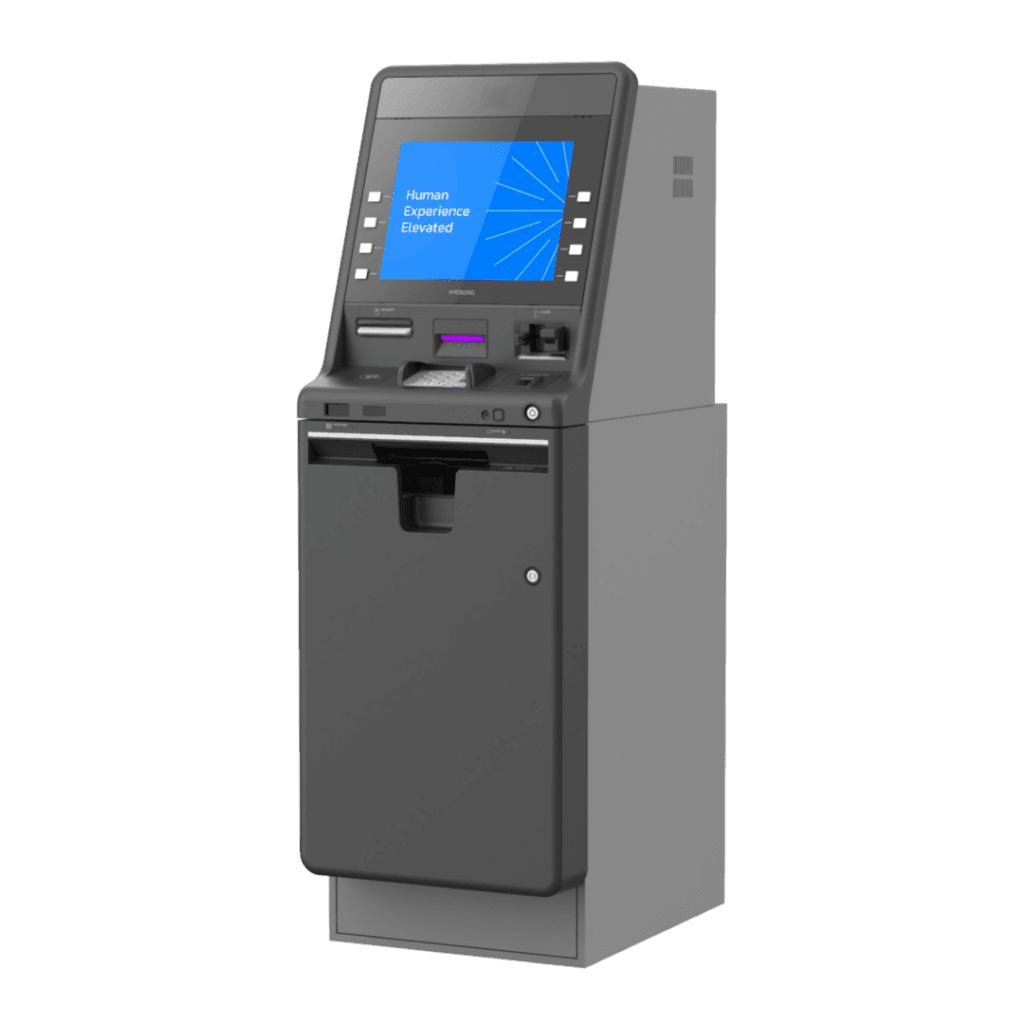

Hyosung 5400SE
Hyosung’s high-capacity off-premise ATM — a 15" display machine built for financial and high-traffic retail installs needing up to 8,000 notes.
- Sold at cost
- no hardware markup
- Processing available
- through Blueprint
- Free shipping
- on this machine
- Setup guidance
- from a specialist
Overview
The Hyosung 5400SE, marketed by Hyosung as the Hero, is built for off-premise and high-traffic financial or retail locations. Its 15" infinity display and dark-grey cabinet distinguish it from Blueprint’s other retail machines, and its cash capacity scales up to 8,000 notes across up to four cassettes — the highest capacity Blueprint offers short of a through-the-wall unit.
It runs on the same Windows CE or Windows 10 platform Hyosung uses across its current lineup, with a UL291 business-hours safe, EMV card reader, and a service-friendly design with accessible power outlets and a vault light for cash loading.
Recommend the 5400SE for locations with genuinely high transaction volume where reload frequency is the main operating cost; for typical retail traffic, the Force or Halo II usually make more sense.
Technical Specifications
- Display
- 15" TFT LCD (Windows CE) or 15" touchscreen (Windows 10)
- Card Reader
- DIP hybrid card reader, EMV Level 1/2 compliant
- Cash Capacity
- 4,000 notes standard; up to 8,000 notes across four cassettes
- Printer
- 3.1" graphical thermal receipt printer
- Safe / Vault
- UL291 business-hours safe; UL291 Level 1 optional
- Locks
- Electronic lock standard; Cencon or S&G A-Series optional
- Communications
- TCP/IP
- ADA Accessibility
- Audio guidance via earphone jack
- Installation Type
- Freestanding, off-premise / financial
- Dimensions (H × W × D)
- 56.7" × 17.71" × 25.2"
- Weight
- 617 lbs
- Power
- AC 100V
- Operating Temperature
- 32°F–104°F (0°C–40°C)
Warranty
Hyosung's standard new-machine warranty covers parts for the first year, with warranty service calls available during that period. Confirm current terms with a specialist before you order.
Shipping & Setup
Free shipping is included on this machine. Delivery timing depends on your location and is confirmed before your final invoice. Blueprint ATMs can advise on placement, connectivity, and initial programming once your machine ships.
Inspect before you sign: check the carton and unit for damage before signing the carrier's delivery paperwork. Note any damage directly on the delivery receipt and photograph it — a clean, signed receipt makes it very difficult to file a damage claim afterward.
Processing Compatibility
This machine can be configured for Blueprint ATM processing. See current processing rates or learn about switching processors if you already own equipment.
What Your Location Needs
An ATM isn't self-sustaining — before install day, your location will need:
- A dedicated 110V power outlet within reach of the machine
- A surge protector installed on that outlet
- An active internet connection — a wired Ethernet (CAT5) line or a cellular/wireless data plan compatible with the ATM
