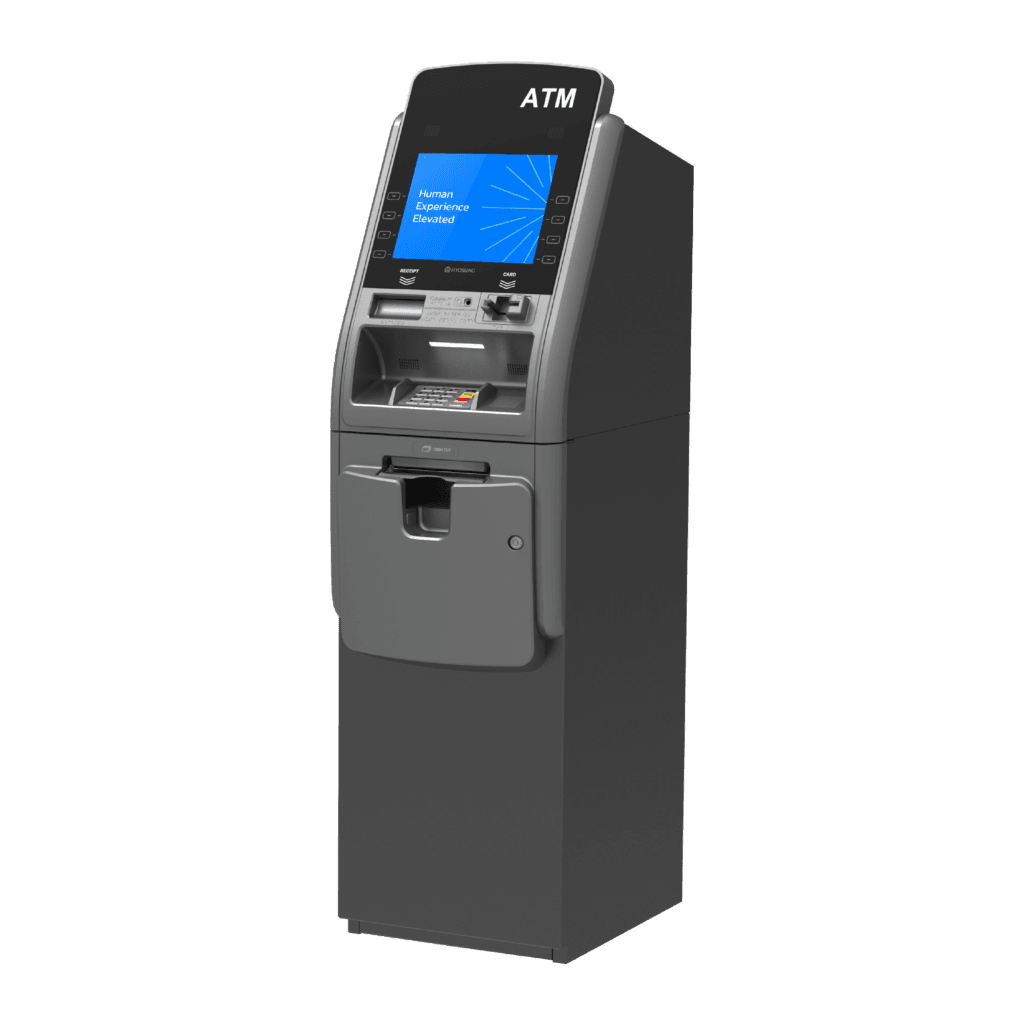

Hyosung Force
A freestanding Hyosung retail ATM built for higher cash capacity — up to 6,000 notes without moving to a through-the-wall cabinet.
- Sold at cost
- no hardware markup
- Processing available
- through Blueprint
- Free shipping
- on this machine
- Setup guidance
- from a specialist
Overview
The Hyosung Force is a freestanding retail ATM built for locations that outgrow a 1,000–4,000 note cassette but don’t need a through-the-wall install. Its dispenser scales up to a 6,000-note configuration, the highest capacity Blueprint offers in a freestanding cabinet.
It shares the Halo II’s core security architecture — a UL291 business-hours safe upgradable to a Level 1 vault, EMV card reader, and PCI 5.0 keypad — on a larger 12.1" display with touch function keys.
Choose the Force over the Halo II when cash capacity or the larger display matter more than upfront price; choose the Halo II when a smaller, lower-cost freestanding machine is the better fit.
Technical Specifications
- Display
- 12.1" TFT LCD, optional privacy filter
- Card Reader
- Dip hybrid card reader, EMV Level 1/2 compliant, optional anti-skimming
- Cash Capacity
- 1,000-note cassette standard; upgradable to 6,000 notes
- Printer
- 80mm graphical thermal receipt printer
- Safe / Vault
- UL291 business-hours safe; optional Level 1 vault
- Locks
- Electronic lock standard; S&G A-Series or Cencon optional
- Communications
- TCP/IP, wireless, dial-up
- ADA Accessibility
- ADA-compliant touch function keys
- Installation Type
- Freestanding retail
- Dimensions (H × W × D)
- 56.4" × 15.7" × 23.4"
- Weight
- 286.6 lbs
- Power
- AC 110–240V, 50/60 Hz
- Operating Temperature
- 41°F–104°F (0°C–40°C)
Warranty
Hyosung's standard new-machine warranty covers parts for the first year, with warranty service calls available during that period. Confirm current terms with a specialist before you order.
Shipping & Setup
Free shipping is included on this machine. Delivery timing depends on your location and is confirmed before your final invoice. Blueprint ATMs can advise on placement, connectivity, and initial programming once your machine ships.
Inspect before you sign: check the carton and unit for damage before signing the carrier's delivery paperwork. Note any damage directly on the delivery receipt and photograph it — a clean, signed receipt makes it very difficult to file a damage claim afterward.
Processing Compatibility
This machine can be configured for Blueprint ATM processing. See current processing rates or learn about switching processors if you already own equipment.
What Your Location Needs
An ATM isn't self-sustaining — before install day, your location will need:
- A dedicated 110V power outlet within reach of the machine
- A surge protector installed on that outlet
- An active internet connection — a wired Ethernet (CAT5) line or a cellular/wireless data plan compatible with the ATM
